16L Backpack Sprayer

• Four spray tips
• Quick fitting harness clips
• Lever action piston pump
• Large opening lid
• New padded straps
• Carry handlev
• Lance clip
• Quality seals
• Built-in screens

Adjustable length from 65 to 115 cm, APS system, which prevents getting dirty of the telescope mechanism, nozzle with a smooth regulation of the angle of the jet, and external lance material, which is a combination of light plastic and extremely durable fiberglass, all these form the most technologically advanced telescopic lance we have ever created. Lance complete with a precise dosing valve integrated with a handle as well as with a filter and a hose connector.

The AA43H-AL6 GunJet Spray Gun is built for heavy-duty service and ease of use.

FEATURES

• Convenient trigger lock for continuous spraying
• Handles operating pressures up to 55 bar/800 PSI
• Stem extends through extension to valve seat located behind orifice disc for drip-free shutoff and instant operating response
• Lightweight aluminum construction
• 1/2" NPT inlet connection
• Can be adjusted from wide angle cone-style spray to more concentrated straight stream-style spray
• Compatible with D6-type orifice discs

The Jacto HH-5 compression sprayer is portable and easy to use. Equipped with a piston-type pump, high-durability tank, adjustable cone nozzle, decompression valve for easy opening, and a wide funnel-type top for easy filling, the Jacto HH-5 is ideal for spraying small areas or individual plants.

SPECIFICATIONS

• Tank Capacity — 1.3 Gallon
• Tank Material — UV resistant Polypropylene
• Fill opening — Funnel type
• Pump type — Piston with pressure relief
• Trigger valve — Ergonomic with filter
• Wand material — Stainless Steel
• Shooulder straps — Adjustable
• Nozzles included — Blue adj. cone

OPTIONS AVAILABLE

• Herbicide hoods
• Extensions
• Booms
• Deluxe nozzle holders
• ECO Valve (Constant pressure valve)
• Nozzles

The very durable HD400 is extremely popular with landscape professionals and organic farmers. The 4-gallon (16-liter) HD400 has an internal mechanical agitator that does an excellent job of keeping powdered chemicals such as kaolin clay organic insecticides in suspension, as well as liquid chemical additives. The HD400 was independently tested for more than 1,500 continuous hours of operation with no breakdowns and the Jacto HD400 is easily converted for either right-hand or left-hand operation. Plus it only takes 6 handle pumps to achieve 45 psi, reducing operator fatigue. The HD400 has a convenient carry handle built into the top of the tank, a handle lock and spray lance lock to make it easy to transport from job to job. We offer you two color combinations for the HD400.The white/orange option is equipped with a Viton® piston cup, a choice for users who will spray caustic chemicals. The blue option features a piston cup made from Santoprene®, which offers a longer wear life than the Viton® option.

• Tank Capacity — 4 Gallon
• Tank Material — UV resistant Polypropylene
• Fill opening — 4.1 inches
• Piston cup material — Viton®
• Chamber volume — 900 ml
• Pumps to 45 psi — 6
• Agitation — Mechanical
• Max working pressure — 65 psi
• Trigger valve — Heavy duty with lock
• Wand material — Stainless Steel
• Shooulder straps — Padded with quick adjust
• Nozzles included — Blue adj. cone & EF80-02 Fan
• Right or left hand operation — Yes

OPTIONS AVAILABLE

• Herbicide hoods
• Extensions
• Booms
• Deluxe nozzle holders
• ECO Valve (Constant pressure valve)
• Nozzles

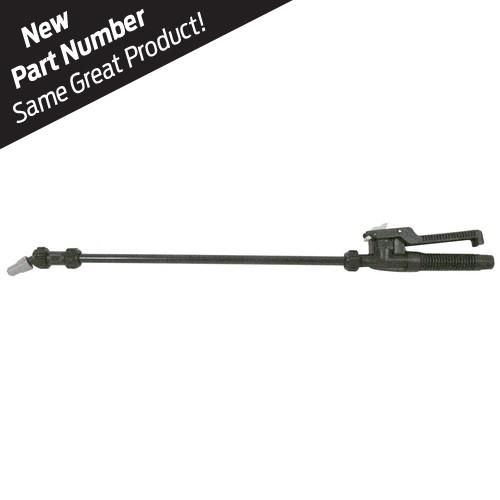

PP-719360 36" Gun and Lance Assembly

The PJB-8c combines technology and ease of use in a very compact size. This 2 gallon shoulder carry sprayer is perfect for use in small plot growing and tight spaces such as greenhouses, border control in landscapes or plantscape environments in office buildings. Whether you need to apply fungicides, pesticides or herbicides, this lightweight easy to use sprayer will do the job efficiently and with less effort as compared to pump-up compression sprayers.

SPECIFICATIONS

• Tank Capacity — 2 Gallon
• Tank Material — UV resistant Polypropylene
• Fill opening — 3.9 inches
• Pump type — Diaphragm;
• Pump flow rate — 0.61 GPM
• Pump settings — One
• Agitation — None
• Trigger valve — Ergonomic with filter
• Wand material — Stainless Steel
• Shooulder straps — Padded with quick adjust
• Nozzles included — Blue adj. cone
• Battery type — Lithium-Ion
• Battery capacity — 20 Wh (10.8V - 2.2 Ah)
• Time to charge — 6 hours

OPTIONS AVAILABLE

• Herbicide hoods
• Extensions
• Booms
• Deluxe nozzle holders
• ECO Valve (Constant pressure valve)
• Nozzles

Jacto's XP Series - Backpack sprayers are ultra-comfortable and lightweight professional-grade sprayers. Jacto’s XP range was born from a tradition of serving the needs of farmers in some of the most forbidding environments in the world. Jacto's robust XP models require less pumping to achieve maximum operating pressure than just about any other sprayer you can find and just 8 pumps for 45 psi.

The Jacto XP is an easy-pumping, high pressure marvel of engineering! Designed for a minimum 1000 hour service life, the factory destruction test exceeded 4000 continuous hours of operation. Plus the unique in-line cylinder attachment means less wear on the Santoprene piston cup for extra-long service life before maintenance is needed. Even the shape of the Jacto tank is purpose-designed, not only for comfort and durability, but also to retain less liquid on the walls and to empty almost entirely. You can pump the Jacto XP sprayer until it’s almost dry – less wasted chemical than with competitive products.

• Tank Capacity — 3 Gallon
• Tank Material — UV resistant Polypropylene
• Fill opening — 3.9 inches
• Piston cup material — Santoprene®
• Chamber material — High Density Poly
• Chamber volume — 620 ml
• Pumps to 45 psi — 8
• Agitation — Hydraulic
• Max working pressure — 130+ psi
• Trigger valve — Ergonomic with filter
• Wand material — Stainless Steel
• Shooulder straps — Padded with quick adjust
• Nozzles included — Blue adj. cone & EF80-02 Fan
• Right or left hand operation — No

OPTIONS AVAILABLE

• Herbicide hoods
• Extensions
• Booms
• Deluxe nozzle holders
• ECO Valve (Constant pressure valve)
• Nozzles

Lithium Ion Battery JB 1220

9910-GH50 Control Unit

Jacto's XP Series - Backpack sprayers are ultra-comfortable and lightweight professional-grade sprayers. Jacto’s XP range was born from a tradition of serving the needs of farmers in some of the most forbidding environments in the world. Jacto's robust XP models require less pumping to achieve maximum operating pressure than just about any other sprayer you can find and just 8 pumps for 45 psi.

The Jacto XP is an easy-pumping, high pressure marvel of engineering! Designed for a minimum 1000 hour service life, the factory destruction test exceeded 4000 continuous hours of operation. Plus the unique in-line cylinder attachment means less wear on the Santoprene piston cup for extra-long service life before maintenance is needed. Even the shape of the Jacto tank is purpose-designed, not only for comfort and durability, but also to retain less liquid on the walls and to empty almost entirely. You can pump the Jacto XP sprayer until it’s almost dry – less wasted chemical than with competitive products.

• Tank Capacity — 4 Gallon
• Tank Material — UV resistant Polypropylene
• Fill opening — 3.9 inches
• Piston cup material — Santoprene®
• Chamber material — High Density Poly
• Chamber volume — 620 ml
• Pumps to 45 psi — 8
• Agitation — Hydraulic
• Max working pressure — 130+ psi
• Trigger valve — Ergonomic with filter
• Wand material — Stainless Steel
• Shooulder straps — Padded with quick adjust
• Nozzles included — Blue adj. cone & EF80-02 Fan
• Right or left hand operation — No

OPTIONS AVAILABLE

• Herbicide hoods
• Extensions
• Booms
• Deluxe nozzle holders
• ECO Valve (Constant pressure valve)
• Nozzles

24" Poly Gun 1/4" FPT

50.002.012 2" Replacement Strainer

DRAIN CLEAN NOZZLE

GREEN TIP QUICK DISCONNECT

7470 1/4 SWIVEL SS

BST-N4 1/2 FEMALE PLUG

BST-4 1/2 FEMALE COUPLER

VOLUTE

CASING COVER
