Port: F NPT

Port: F NPT

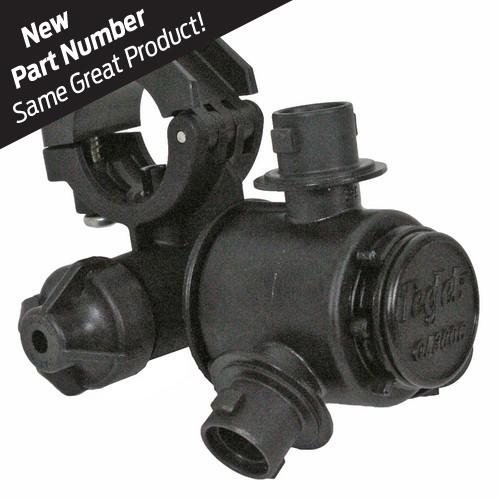

Available with either 3, 4, or 5 spray positions for easy change of spray tips or quick boom flushing.
Postivie shutoff between each spray position.
Automatic spray alignment using flat fan spray tips.
Includes ChemSaver diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 psi (0.7 bar).
Also available with optional 56720 ChemSaver air shutoff valve.
Molded hex socket in upper clamp for attaching to flat surfaces.

Hinged upper clamp reduces assembly time and fits inside common boom channels.
Maximum operating pressure of 300 psi (20 bar).
Available in 20 mm, 25 mm, 1/2', 3/4", or 1" pipe connections.
2.25 gpm (5.2 l/min) with 5 psi (0.35 bar) pressure drop.
Mounts to a 3/8" (9.5 mm) hole drilled in pipe or tubing.

Machine Type: QJ Quick TeeJet Nozzle Bodies

Machine Type: ProFlo Nozzle Bodies

41402-VO TWS ( CNH ) BOOM ENDVALVE (SEE MEMO)

40200 COMBO-JET® Adapter

The DR series Wilger’s 3rd stage drift reduction series, producing good coverage, with exceptional drift reduction.
The DR series tip-caps reduce ~90% of driftable fines, compared with the same application with an ER series tip/cap.
Ideal for applications which value drift reduction over coverage. Typically coverage is maintained by using higher application volumes. (i.e. Ground-Applied & Systemic Herbicides) Spray Angle: 110°

Spray Angle: 110°

Spray Angle: 110°

Spray Angle: 110°

Spray Angle: 110°

1½"-2" 50 Mesh Screen

40204 COMBO-JET® Adapter

40203 COMBO-JET® Adapter to S-S

The MR series Wilger’s 2nd stage drift reduction series, producing great coverage, with very significant drift reduction.
The MR series tip-caps reduce ~75% of driftable fines, compared with the same application with an ER series tip/cap.
Ideal for applications which require good coverage, but require high levels of drift reduction. (i.e. Systemic Herbicides)

MR110-06 Tip and Cap COMBO-JET® Grey

SR110-05 Tip and Cap COMBO-JET® Brown

SR110-08 Tip and Cap COMBO-JET® White

Port: F NPT
