The 48" Tow Soil Plug Aerator from Agri-Fab is perfect for keeping your lawn nourished and looking great. It can pull soil plugs up to 3 inches deep to allow air, water, and fertilizer to properly reach the roots of your grass and keep it lush. It can also be used to break up soil and improve lawns that have damage from being in high foot traffic areas or contain heavy compacted materials, such as clay.

FEATURES

• 32 galvanized knives penetrate the soil easily
• Flat free maneuverable tires for smooth transport
• 48" weight tray can hold up to 140 pounds
• Comes with a transport handle for easy raising and lowering of the aerator knives
• Near-universal compatible hitch system with lawn tractors (requires a tractor with greater than 9 horsepower)

The 48" Tow Lawn Dethatcher from Agri-Fab can help make caring for large gardens easy. It comes with 24 tines that break up and turn over matted layers of thatch and large clippings so they are brought to the surface to be collected for disposal or composting.

FEATURES

• 24 heat treated 3/16" durable tines
• 48" tray holds up to 70 pounds for added soil penetration
• Transport cantilever handle for easy raising and lowering of the tines
• Large semi-pneumatic tires for smooth transport

STANDARD FEATURES

• Unique transport handle for easy raising and lowering of the aerator knives.
• 10” flat free tires for smooth transport.
• 24 galvanized knives to penetrate the soil easily.
• Knives 100% pre assembled, saving valuable time.
• Assembled product size: 50" x 39" x 24".
• Carton size L x W x H 43" x 17.6" x 8.6".

STANDARD FEATURES

• Up to 1150 lbs. capacity.
• 24" diameter x 60" wide.
• Hitch tubes act as a scraper bar to prevent clumps of soil from being compacted on the roller drum.
• Roller drain/fill plug empties easily and fills with a regular garden hose.
• 67" x 44" x 24" assembled.

STANDARD FEATURES

• Large 13" x 5" pneumatic tires allow for transport over any terrain.
• Rust-proof poly hopper is easy to clean and has a long product life.
• 175 lbs. capacity and durable impeller allow for up to 1 acre (40,000 sq. ft.) of coverage depending on rate of speed and material spread.
• Assembled product size: 43" x 38" 41"
• Carton size L x W x H 38.7" x 18.25" x 24.9"

The J400 series cannon sprayer provides the speed and versatility you need to protect your crops with ease and accuracy. The J400 series has the same 105 gallon capacity and Jacto centrifugal pump as the AJ401, but with a larger fan with higher CFM and discharge speeds. A completely different outlet duct assembly with main outlet and two smaller directional intermediate ducts lets you achieve spray swaths up to 80 feet, depending on the crop and wind conditions. The specially designed Cannon head is easy to operate and can be adjusted horizontally up to 290 degrees and vertically by 34 degrees.

Three versions are available, the standard J400 with manually adjusted outlet duct, the J400CHT with hydraulic duct control and J400CHT/EL with electric control valve from the factory.

Popular applications are vegetables, especially pumpkins and sweet corn, blueberries, Christmas trees as well as container and tree nurseries.

FEATURES

• Up to 80 foot spray swath
• 105 gallon poly tank
• Jacto Centrifugal pump
• Chemical container rinse system
• Suction filter with washable and reusable 40 mesh stainless element
• Bypass and mechanical agitation
• 3 gallon freshwater handwash/eyesplash safety tank
• J400 with manual duct controls
• Recommended tractor — 40 hp and above
• Optional electric valve kit with in cab controller #SPWELCKIT2 for the J400
• Optional 24 inch duct extension kit #J400EXT24

The J400 series cannon sprayer provides the speed and versatility you need to protect your crops with ease and accuracy. The J400 series has the same 105 gallon capacity and Jacto centrifugal pump as the AJ401, but with a larger fan with higher CFM and discharge speeds. A completely different outlet duct assembly with main outlet and two smaller directional intermediate ducts lets you achieve spray swaths up to 80 feet, depending on the crop and wind conditions. The specially designed Cannon head is easy to operate and can be adjusted horizontally up to 290 degrees and vertically by 34 degrees.

Three versions are available, the standard J400 with manually adjusted outlet duct, the J400CHT with hydraulic duct control and J400CHT/EL with electric control valve from the factory.

If you choose the J400CHT or J400CHT/EL models you must have two open sets of remotes for the hydraulic hoses to be plugged into.

Popular applications are vegetables, especially pumpkins and sweet corn, blueberries, Christmas trees as well as container and tree nurseries.

FEATURES

• J400CHT/EL with hydraulic and electric controls
• Up to 80 foot spray swath
• 105 gallon poly tank
• Jacto Centrifugal pump
• Chemical container rinse system
• Suction filter with washable and reusable 40 mesh stainless element
• Bypass and mechanical agitation
• 3 gallon freshwater handwash/eyesplash safety tank
• Recommended tractor — 40 hp and above
• Optional 24 inch duct extension kit #J400EXT24

Jacto's versatile J2000 Cannon Sprayer is designed for wide swath spraying applications and uses the time proven J600CHT fan and outlet duct assembly for superior performance and spray deposition. The fan assembly includes a disconnect for use with handguns, filling and mixing, and has up to a 110-foot wide spray swath depending on crop and wind conditions.The J2000 is equipped with a Jacto 26 gpm ceramic cylinder high pressure piston pump for added performance and when a hand gun application is needed with handgun pressures up to 300 psi. The rear frame bumper will accept two hose reels and there are two separate handgun ports for quick connection of the reels.

Quick connect fitting sold separately.

The J2000 is fitted with a wide angle constant velocity PTO shaft for tighter turns and is ideal for container nurseries, shadehouses, tree farms, highbush and low wild blueberries, pumpkins, sweet corn, a variety of other vegetables and Christmas trees.

FEATURES

• Up to 110 foot spray swath depending on crop and wind conditions
• 550 gallon poly tank
• Trailer mounted with 11L-15 flotation tires
• Equipped with a Jacto JP100 – 26 gpm pump
• Plumbed for optional hand guns, at up to 300 psi pressure
• CV-PTO standard
• Cable controls standard
• Mechanical and bypass agitation
• Two-stage suction filter with shutoff and washable 24/40 mesh elements
• Hydraulic outlet duct controls for rotation and elevation-uses the tractor hydraulics
• Chemical container rinse system
• 3 gallon freshwater hand wash/eye splash tank
• Recommended tractor – 75 HP and above
• Optional 39 or 78 inch duct extension kits available
• Optional 1/2" handgun fitting- #086447 fitting + #706792 o-ring

CANNON DUCT

The Cannon outlet duct is easy to operate and can be adjusted horizontally up to 290 degrees and vertically by 34 degrees. Besides the main cannon duct, there are two smaller adjustable intermediate ducts on the lower side of the main duct and each of these ducts has three nozzles for even better close up coverage.

OTHER APPLICATIONS

The J2000 is used in many non crop applications such as pasture and forage field maintenance, as well as fly and odor control in livestock and landfill operations.

Jacto's J2000T Tandem Cannon Sprayer is designed for wide swath spraying applications and uses the time proven J600CHT fan and outlet duct assembly for superior performance and spray deposition. The fan assembly includes a disconnect for use with handguns, filling and mixing, and has up to a 110-foot wide spray swath depending on crop and wind conditions.The J2000T is equipped with a Jacto 26 gpm ceramic cylinder high pressure piston pump for added performance and when a hand gun application is needed with handgun pressures up to 300 psi. The rear frame bumper will accept two hose reels and there are two separate handgun ports for quick connection of the reels.

Quick connect fitting sold separately.

The J2000T is fitted with a wide angle constant velocity PTO shaft for tighter turns and is ideal for vegetable growers with soft or sandy fields, wild blueberries, pumpkins and melons, container nurseries or where more stability is needed for the sprayer.

FEATURES

• Tandem axles for greater flotation, less compaction and increased stability
• Up to 110 foot spray swath depending on crop and wind conditions
• 550 gallon poly tank
• Trailer mounted with 11L-15 flotation tires
• Equipped with a Jacto JP100 – 26 gpm pump
• Plumbed for optional hand guns, at up to 300 psi pressure
• CV-PTO standard
• Cable controls standard
• Mechanical and bypass agitation
• Two-stage suction filter with shutoff and washable 24/40 mesh elements
• Hydraulic outlet duct controls for rotation and elevation-uses the tractor hydraulics
• Chemical container rinse system
• 3 gallon freshwater hand wash/eye splash tank
• Recommended tractor – 75 HP and above
• Optional 39 or 78 inch duct extension kits available
• Optional 1/2" handgun fitting- #086447 fitting + #706792 o-ring

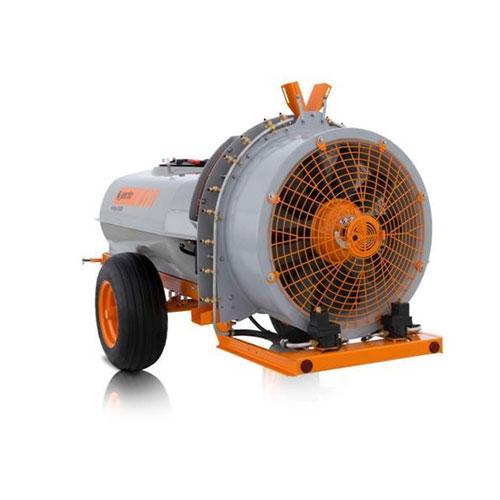

Jacto's J1000CHT Cannon Sprayer is designed for wide swath spraying applications. It uses the same fan and outlet application assembly found on the very popular and proven 3-point hitch mounted J400CHT. The J400CHT application assembly has been engineered to fit on the successful, 265 gallon capacity low profile tracking axle chassis. The tracking axle allows for greater maneuverability and tighter turns, letting the trailer chassis follow within the track of the tractor.

The J1000CHT comes standard with hydraulic control of the outlet duct assembly for up to 290 degrees of rotation and and 34 degrees of elevation and has two smaller adjustable intermediate ducts. Plus in-cab electric on/off spray controls from the factory.

Popular applications include highbush blueberries, cane berries, pumpkins, melons, container nurseries, vegetables, Christmas trees, nursery trees and pasture control. Depending on the crop and wind conditions, the J1000CHT has an effective spray swath up to 80 feet wide.

FEATURES

• 11L-15 Flotation tires
• Steering/tracking axle for tighter turns
• 265 gallon fiberglass tank
• Both mechanical and bypass agitation
• Jacto 20 gpm three-piston ceramic sleeved piston pump
• Uses the J400CHT series Cannon outlet spray delivery system
• Proven system has an average spray swath of 80 feet depending on crop and wind conditions
• Vertical and horizontal hydraulic duct control, requires two sets of tractor remotes
• Electric on/off control with in-cab controller
• Chemical container rinse system
• 3 gallon fresh water hand wash/eye splash tank
• Suction filter with shutoff and washable 30 mesh filter element
• Narrow and low profile, the J1000 is only 53" wide
• Track width 45"
• Consumes 20HP for the fan and pump
• A minimum 50 HP tractor is recommended
• Optional 24 inch duct extension kit #J400EXT24

TRACKING AXLE

The draw bar attaches to the lift arms of the tractor and has a tie rod that connects the to the movable axle. When the tractor turns it causes the wheels to turn and follow the track of the tractor, allowing this sprayer to make very tight turns without binding the PTO shaft.

OPTIONAL 24" DUCT EXTENSION

Optional duct extension kit. In crops such as highbush blueberries and certain varieties of sweet corn, it may be desirable to add the 24 inch duct extension. This extension mounts to the top of the fan housing before the outlet duct to raise the whole assembly. This higher mount allows you to achieve proper spray angles across, down and through the crop. The kit comes complete with all mounting hardware and hose extensions and can be added to any new or in operation J1000CHT series sprayer.
