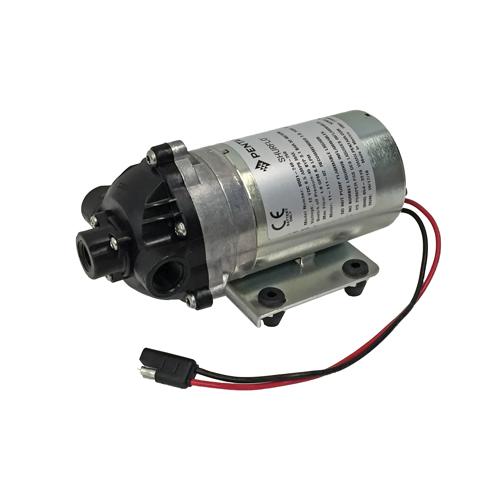

The 8000 Series diaphragm pump is Shurflo®'s most widely used industrial and agricultural pump. With spherically shaped valves and automatic demand switch, these pumps deliver consistent, dependable operation and priming; up to 1.8 GPM [6.8 l/min]. They are available in a variety of chemically resistant materials. They can be mounted in any position, and are designed for easy maintenance. They are available in a variety of voltages, from 12 VDC to 230 VAC.
Pressures up to 150 PSI [10.3 BAR]
Self-Priming up to 8 Vertical Feet [2.4M]
Chemically Resistant Materials
Designed for Spraying and Fluid Transfer
Can Run Dry without Damage
Built-In Check Valve
Supported for agriculture

Demand Switch or Relief Valve: Bypass

Designed for a wide array of uses in the industrial and agricultural industries, the 8007-543-850 Diaphragm Pump is a great option for your spraying and fluid transfer needs.

FEATURES

• Can withstand pressures of up to 45 PSI
• Self-priming up to 8'
• Materials built for chemical resistance
• Can run dry without damage
• Built-in conical check valve provides high flow rate
• Can be mounted in any position and are designed for easy maintenance
• 3/8" female pipe thread inlets and outlets

The FMC-150-HYD-206 Centrifugal Pump from Ace Pumps is designed to provide mounting versatility, customized performance, and easy maintenance. Many original Ace hydraulic motor driven pumps are still operating today after 30 years of service.

FEATURES

• Designed to provide high pressures and large volumes for applications with large tanks and longer spray booms
• Equipped with a stainless steel shaft and wear ring for corrosion resistance
• 206 hydraulic motor allows up to 7 GPM and fits virtually all tractor hydraulic systems
• Self-priming
• Can be mounted in many different places as location not tied to the PTO or engine drive shaft
• Equipped with easily replaceable FKM mechanical seals
• Built-in needle valve allows bypass of up to 9 GPM excess hydraulic fluid (in open centre systems)
• 1-1/2" NPT inlet and 1-1/4" NPT outlet

ADDITIONAL NOTES

• Recommended for pressure compensating closed centre, load sensing/pressure flow compensating closed centre, or open centre (up to 16 GPM with needle valve bypass) hydraulic systems.

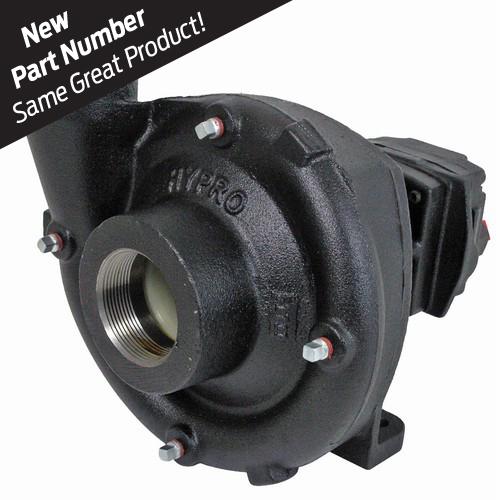

9303C Centrifugal Pumps are designed for liquid transfer and spraying that will suit a diverse array of industrial and agricultural functions, such as deploying water, emulsives, insecticides, herbicides, liquid fertilizers, and more.

FEATURES

• Rugged cast iron housing
• Hydraulic motor can be used in load-sensing or open center/closed center systems
• Can be mounted on tractor or sprayer into vehicle's hydraulic system, freeing up the PTO for other uses
• Viton/ceramic standard pump seals
• 1-1/2" NPT inlet x 1-1/4" NPT outlet
• Can withstand pressures up to 130 PSI

9306C Centrifugal Pumps are designed for liquid transfer and spraying that will suit a diverse array of industrial and agricultural functions, such as deploying water, emulsives, insecticides, herbicides, liquid fertilizers, and more.

FEATURES

• Rugged cast iron housing
• Hydraulic motor can be used in load-sensing or open center/closed center systems
• Can be mounted on tractor or sprayer into vehicle's hydraulic system, freeing up the PTO for other uses
• Viton/ceramic standard pump seals
• 2" NPT inlet x 1-1/2" NPT outlet
• Can withstand pressures up to 127 PSI

9306C Centrifugal Pumps are designed for liquid transfer and spraying that will suit a diverse array of industrial and agricultural functions, such as deploying water, emulsives, insecticides, herbicides, liquid fertilizers, and more.

FEATURES

• Rugged cast iron housing
• Hydraulic motor can be used in load-sensing or open center/closed center systems
• Can be mounted on tractor or sprayer into vehicle's hydraulic system, freeing up the PTO for other uses
• Viton/ceramic standard pump seals
• 2" NPT inlet x 1-1/2" NPT outlet
• Can withstand pressures up to 140 PSI

The 4001C Roller Pump from Hypro is a great choice to suit your low-pressure sprayer application needs, offering high chemical resistance for herbicides, pesticides, liquid fertilizers, and more.

FEATURES

• Cast iron housing and rotor
• Viton seals and four Super Rollers provide resistance to agricultural chemicals
• 3/4" NPT inlet and outlet

9915-D1063 Diaphragm Pumps goes up to 720 psi with features like pre-profiled DURAMAX® diaphragms, crown-shaped pistons with dual piston rings, roller-bearing-supported and thermally treated connecting rods, and a unique 32-hole pressure dampener system for smoother coverage to help meet the most demanding spraying needs.

• Suitable for applications including vineyard, orchard, and other tree spraying application needs
• 28 GPM diaphragm pump
• Hardened Bioxistop aluminum heads, manifold, and case helps preserve pump from white oxidation of aluminum that comes in contact with water
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Crowned-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Roller bearing supported connecting rods that are thermally treated help prevent wear
• Unique 32-hole pressure dampener system helps to reduce vibrations for smoother coverage of treatment
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D1504 Diaphragm Pumps goes up to 720 psi with features like pre-profiled DURAMAX® diaphragms, crown-shaped pistons with dual piston rings, roller-bearing-supported and thermally treated connecting rods, and a unique 32-hole pressure dampener system for smoother coverage to help meet the most demanding spraying needs.

• Suitable for applications including vineyard, orchard, and other tree spraying application needs
• 34.6 GPM diaphragm pump
• Hardened Bioxistop aluminum heads, manifold, and case helps preserve pump from white oxidation of aluminum that comes in contact with water
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Crowned-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Roller bearing supported connecting rods that are thermally treated help prevent wear
• Unique 32-hole pressure dampener system helps to reduce vibrations for smoother coverage of treatment
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D303 Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 8.2 GPM flanged diaphragm pump
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D303AP-A Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 8.2 GPM 3/4" S-shaft diaphragm pump
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D303GRGI Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 8.2 GPM 3/4" H-shaft diaphragm pump with gearbox and controller
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D403 Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 9.8 GPM diaphragm pump
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D403GRGI Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 9.8 GPM 3/4" H-shaft diaphragm pump with gearbox and controller
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D503 Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 13.5 GPM flanged diaphragm pump
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D503AP-A Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 13.5 GPM 1" S-shaft diaphragm pump
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-D503GRGI Diaphragm Pumps are constructed with a variety of features, such as hardened Bioxistop aluminum components, 3 DURAMAX® diaphragms with double piston rings, crown-shaped pistons, and corrosion-resistant 316 stainless steel vales to help improve longevity and minimize mechanical stress.

• Suitable for applications including crop spray and liquid fertilizer applications
• 13.5 GPM 1" H-shaft diaphragm pump with gearbox and controller
• Hardened black oxide aluminum heads, manifold, and case
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Double piston rings – helps maintain oil pressure to hydrodynamically support the diaphragm through the pressure cycle
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-DP252 Diaphragm Pumps are constructed with enhanced features, such as chemical-resistant polypropylene components and 2 pre-profiled DURAMAX® diaphragms with crown-shaped pistons. These pumps also have a new and efficient valve design with corrosion-resistant 316 stainless steel and easy-access valve caps to help provide extended, more robust pump performance when you need it most.

• 6.3 GPM diaphragm pump
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Less piston stroke for longer diaphragm life
• Equipped with a needle bearing on the connecting rods to ensure pump longevity.
• Easy access valve caps
• Polypropylene pump models are ideal for highly acidic chemicals, such as N-pHURIC
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included

9915-DP252GRGI Diaphragm Pumps are constructed with enhanced features, such as chemical-resistant polypropylene components and 2 pre-profiled DURAMAX® diaphragms with crown-shaped pistons. These pumps also have a new and efficient valve design with corrosion-resistant 316 stainless steel and easy-access valve caps to help provide extended, more robust pump performance when you need it most.

• 6.3 GPM diaphragm pump with gearbox and controller
• Crown-shaped pistons conform to the diaphragm at pressure stroke to help prevent wear
• Valves are made of corrosion-resistant 316 stainless steel
• Spherical profiled valve poppet designed to deliver higher volumetric efficiencies
• Less piston stroke for longer diaphragm life
• Equipped with a needle bearing on the connecting rods to ensure pump longevity.
• Easy access valve caps
• Polypropylene pump models are ideal for highly acidic chemicals, such as N-pHURIC
• Clockwise and counterclockwise pump shaft rotation
• Mounting base included
